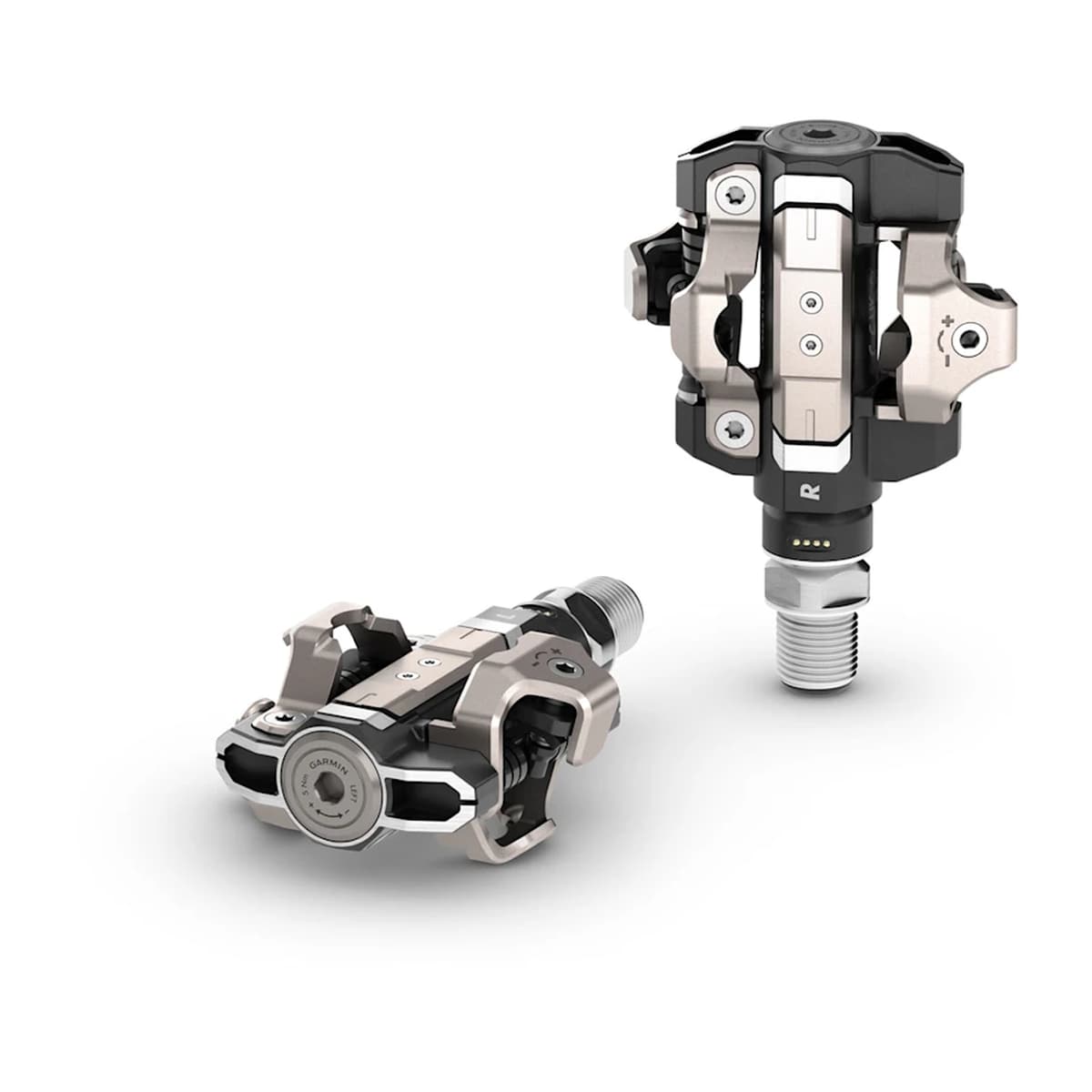

Garmin Rally™ RS/XC210 Dual-Sensing Power Meter Bundle for SHIMANO SPD-SL/SHIMANO SPD

One system, three platforms, countless possibilities!

This bundle contains pedal bodies for the SHIMANO SPD-SL as well as for the SHIMANO SPD platform. You can therefore switch between the two systems as required. All you need for a quick and easy replacement is a hex wrench.

The GARMIN Rally™ wattmeter pedal system makes watt-based power measurement more flexible and straightforward than ever. In contrast to its predecessor, the Rally 210 now comes with built-in, rechargeable batteries that make battery changes unnecessary and offer up to 90 hours of ride time per charge. Forgot to charge? – No problem, the quick-charging function gives you up to 12 hours of ride time with just 15 minutes of charging. You can also set the pedals to travel mode to conserve battery during transport. In addition, the pedals now offer the smart Pedal IQ function, which reminds you to recalibrate the pedals in case of strong temperature fluctuations or changes in the installation angle. There is also good news for users of oval chainrings: These are now also compatible with the Rally 210 pedals.

What has remained is the high degree of flexibility that allows you to customise the Rally pedals to your needs. Whether Road, Gravel or MTB: with three available Rally™ platforms for LOOK KéO, SHIMANO SPD-SL or SHIMANO SPD, every ambitious cyclist can now find the right powermeter pedal for them. You decide with which platform and cleats you want to ride. Switching between road and XC pedal bodies, for example, is quick and easy. So you can use different clipless pedal systems on different bikes with only one pair of axles and benefit from all measurement and analysis functions that the GARMIN Ecosystem has to offer, both onroad and offroad.

As with its predecessor, GARMIN has once again opted for a user-friendly “Plug & Play” concept: Simply screw the pedals onto the crank arms, pair them via ANT+ or Bluetooth with your compatible bike computer or GARMIN Connect™ on your smartphone, enter the crank length and after a short calibration you are ready to go. The measurement takes place directly at the pedal spindle – several hundred times per second.

In the Rally 210 series, sensors for watt measurement are installed on both pedal axles in order to be able to evaluate the pedalling power for the left and right pedal independently of each other. This gives you access to the full range of functions of the GARMIN Cycling Dynamics – in addition to power and cadence values, this also includes detailed analyses of the left and right wattage distribution, your power zones over the course of the crank revolution, sitting and standing phases as well as where power is applied along the pedal spindle.

Whatever goals you wish to reach: The GARMIN Rally power meter pedals support you with comprehensive data for each of your activities. Track the progress of your training performance, analyse and optimise your pedal stroke, get realistic values for your virtual indoor training, and use performance indicators like your FTP value to get to most out of yourself during the race! Experience the new flexibility of watt measurement – experience GARMIN Rally™!

Highlights
• Rally XC: ROBUST DESIGN: Maximum robustness. For tougher rides. Rally XC pedals have been redesigned and are now made entirely of metal. The result? Greater durability and a lower stack height to reduce pedals strikes on rocks and stones.
• Rally RS: CARBON-REINFORCED DESIGN: Lighter. Stronger. Fancier. The RS210 pedals have a new, carbon-reinforced design to offer a lower weight and high stiffness.
• LONG BATTERY LIFE & TRAVEL MODE: The rechargeable power meter pedals offer up to 90 hours of battery life. Forgot to charge? No problem, the quick-charging function gives you up to 12 hours of battery life with just 15 minutes of charging. Travel mode also offers the option of putting the pedals to sleep to prevent discharges during transport.
• RELIABLE MEASUREMENTS: With revised strain gauges and a new gyroscope, the new Rally models are very responsive and offer a measuring accuracy of +/- 1 %.
• EASY TO TRANSFER: The pedal axle can be easily separated from the pedal body with just a hex wrench. This allows you to quickly switch between road and MTB pedal bodies so that you always have the right pedal type for your activity. Additional pedal bodies are available individually or as a bundle.
• PEDAL IQ: If the temperature fluctuates greatly or the installation angle is changed, calibration drift may occur and recalibration is necessary. The smart Pedal IQ function reminds you on compatible Edge bike computers or Garmin smartwatches before or during an activity when it makes sense to recalibrate.


Analysis:
• FORCE DATA: See new insights into your performance and the relationship between power and cadence*.
• DUAL-SENSING: With more sensors come more insights. This dual-sensing power meter unlocks advanced cycling dynamics, power, cadence, L/R balance, standing and seated time and more.
• SEATED AND STANDING TIME: Track the amount of time you spend in each position and draw conclusions about the effectiveness of the positions.
• POWER PHASE: Get a clear look at the point at where you are producing power in the pedal stroke.
• PLATFORM CENTER OFFSET: Ensure proper cleat position by keeping track of where power is applied on the pedal.
• FULLY CONNECTED: Pair Rally™ power meter pedals with a compatible Edge® bike computer and the Garmin Connect™ app** for easy data uploads and software updates.
• YOUR DATA WHERE YOU WANT IT: Train with popular apps such as Strava, TrainingPeaks®, TrainerRoad and many more, then view your training data in Garmin Connect.
• COMPATIBLE WITH OVAL CHAINRINGS: Rally™ power meter pedals also provide precise performance data when used with oval chainrings.
• TRAIN MIT TACX®: Even if you are not training indoors with a smart trainer, you can still connect the Rally™ pedals to the Tacx Training™ app to explore famous courses, complete workouts and more***.

*When used with a compatible Edge bike computer or a Garmin smartwatch.
** App on a compatible smartphone paired with the Rally™ power meter pedals.
***Depending on the functions used, a Tacx Premium subscription may be required.

Details:
• Road and MTB clipless pedal system for watt and cadence measurement
• Easy to install and use with "Plug & Play" concept
• Integrated, rechargeable batteries for up to 90 hours battery life
• Separate wattage measurement via sensors on both pedal axles (can be displayed individually and combined)
• Smart Pedal IQ function automatically reminds you when it's time to recalibrate (compatible GARMIN Edge bike computers or GARMIN smartwatch required)
• Compatible with GARMIN RS / SHIMANO SPD-SL cleats and GARMIN XC / SHIMANO SPD
• Optional pedal bodies available for LOOK KéO (see accessories)
• Can be paired via ANT+ and Bluetooth with compatible bike computers, sports watches or smartphones with GARMIN Connect™ app
• Status LED to indicate assembly and maintenance information as well as low battery level
• Adjustable release tension of the shoe
• Durable stainless steel pedal areas for optimal power transmission

Technical details:
• Material (with Rally RS pedal body): plastic composite material (pedal body); stainless steel (pedal spindle, platform)
• Material (with Rally XC pedal body): steel, aluminium
• Compatible cleats: GARMIN Rally™ RS / SHIMANO SPD-SL, GARMIN Rally™ XC / SHIMANO SPD
• Intended use: Road, triathlon, gravel, XC, MTB
• Power measurement: dual-sensing
• Cadence measurement: yes
• Cycling Dynamics: yes
• Calibration: yes
• Measuring tolerance: +/- 1 %
• Interfaces: ANT+ and Bluetooth Smart (BLE)
• Firmware updates: Yes (via GARMIN Connect™)*
• Battery life: up to 90 hours (via integrated rechargeable batteries)
• Battery type: lithium-ion
• Q factor: 53 mm (55 mm with washer)
• Stack height (with RS pedal body): 12.2 mm
• Stack height (with XC pedal body): 13.5 mm)
• Max. rider weight: up to 105 kg
• Weight (with RS pedal body): approx. 312 g (pair)
• Weight (with XC pedal body): approx. 436 g (pair)

Note:
* Smartphone compatibility of the Garmin Connect™ app (system requirements): http://www.garmin.com/en-GB/ble

In the box:

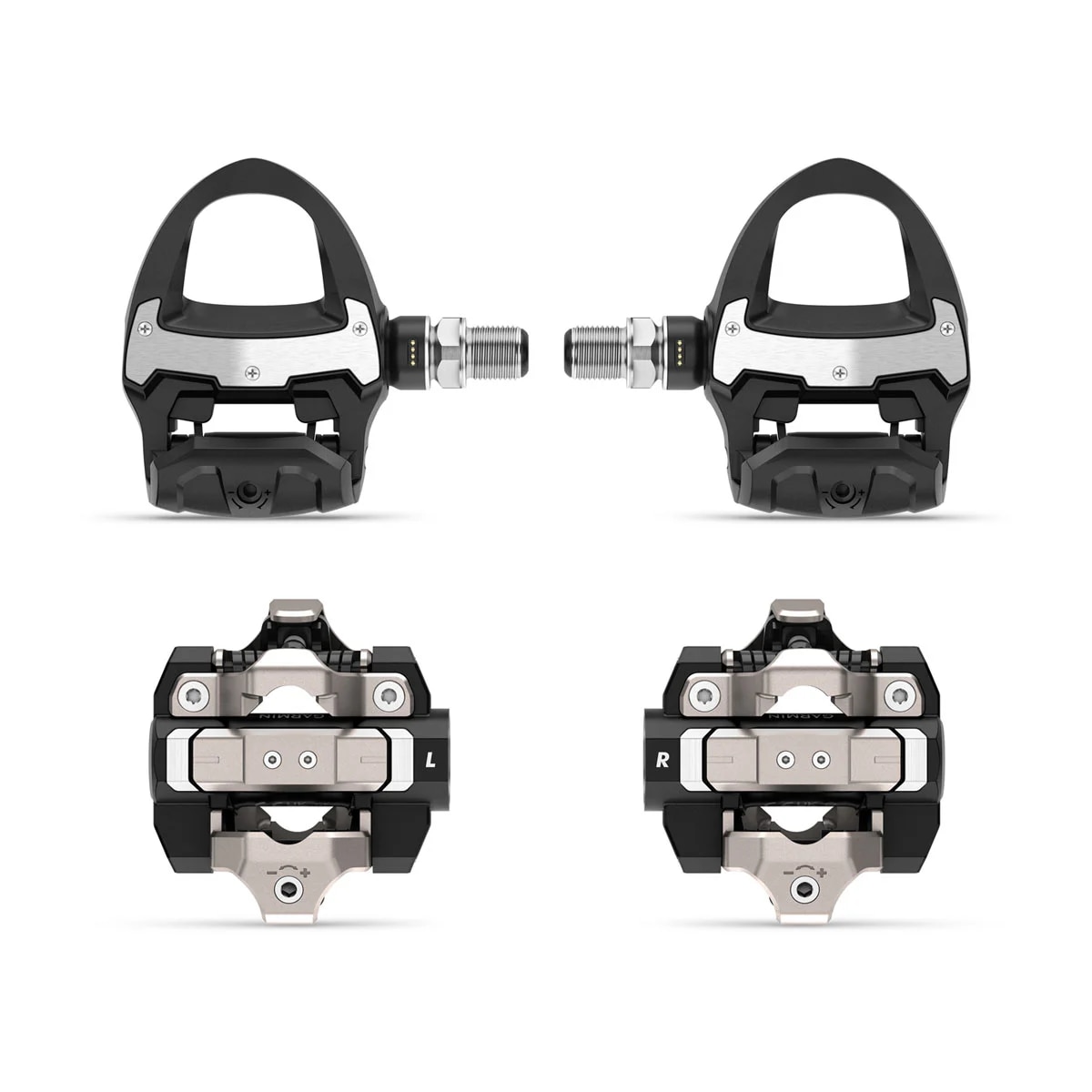

GARMIN Rally™ RS/XC210 bundle power meter pedals consisting of:
• 1 pair of GARMIN Rally™ RS210 pedals
• 2 GARMIN Rally™ XC pedal bodies for Rally XC210 (SHIMANO SPD)
• 1 pair of GARMIN Rally™ RS cleats incl. mounting material
• 1 pair of GARMIN Rally™ XC cleats incl. mounting material
• 2 washers, each 2 mm
• 2 charging clips
• 2 charging/data cables
• 1 quick start manual


Optional accessories:
• GARMIN Rally™ RK pedal body replacement kit for Rally RK110/210 (LOOK KéO) (prod. code: 1617550001)

Further Rally™ Starter Sets:
• GARMIN Rally™ RK210 dual-sensing power meter pedals for LOOK KéO (prod. code: 1617120001)
• GARMIN Rally™ RK110 single-sensing power meter pedals for LOOK KéO (prod. code: 1617130001)
• GARMIN Rally™ RS210 dual-sensing power meter pedals for SHIMANO SPD-SL (prod. code: 1617160001)
• GARMIN Rally™ RS110 single-sensing power meter pedals for SHIMANO SPD-SL (prod. code: 1617170001)
• GARMIN Rally™ XC210 dual-sensing power meter pedals for SHIMANO SPD (prod. code: 1617190001)
• GARMIN Rally™ XC110 single-sensing power meter pedals for SHIMANO SPD (prod. code: 1617200001)

further GARMIN Rally bundle kit:
• GARMIN Rally™ RK/XC210 dual-sensing power meter bundle for LOOK KéO/SHIMANO SPD (prod. code: 1617150001)


Manufacturer: GARMIN International, 1200 E 151st Street Olathe, KS 66 062 , USA , www.garmin.com
Responsible person: Garmin Würzburg GmbH, Leightonstraße 7, 97074 Würzburg, Germany, www.garmin.com/compliance
